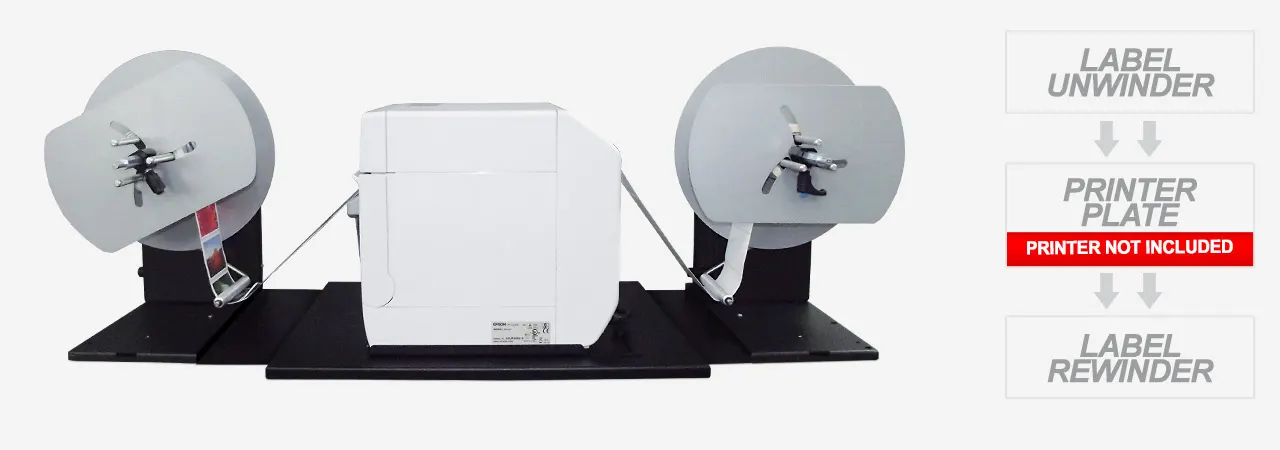

Roll to Roll System for Epson TM-C3500 printer

label unwinder/rewinder for Epson TM-C3500 printers

FEATURES


The unwinder and rewinder for Epson TM-C3500 printers are used to manage rolls of media up to 127mm (5") having an outside diameter up to 250mm (9.84"). The users can select among the adjustable core holder 40mm - 118mm (1.57" - 4.64") and the 76mm (3") fixed.

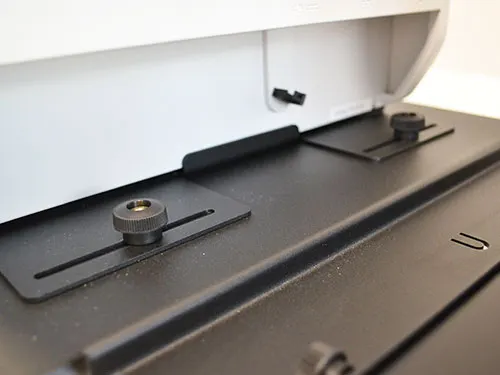

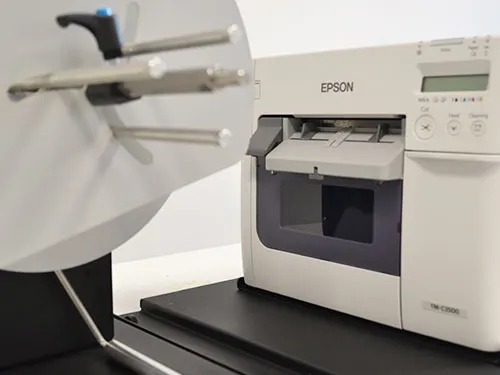

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

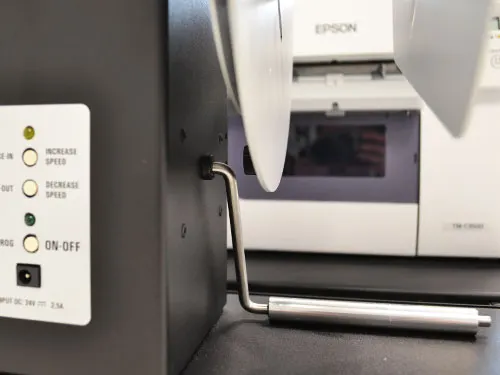

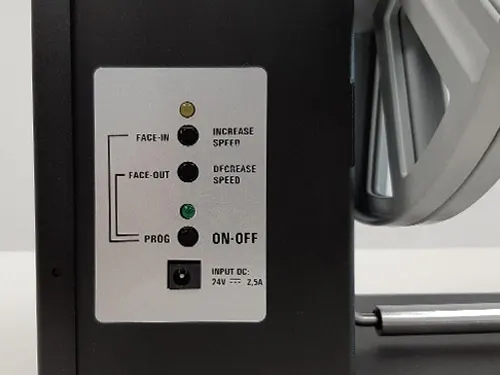

An external power supply 100/240VAC - 2.5A at 24V corrente continua allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.


Official page EPSON.

Brochure | User Manual |

M O D E L S
ASS1111-S0 ASD1111-S0 ASS1114-S0 ASD1114-S0

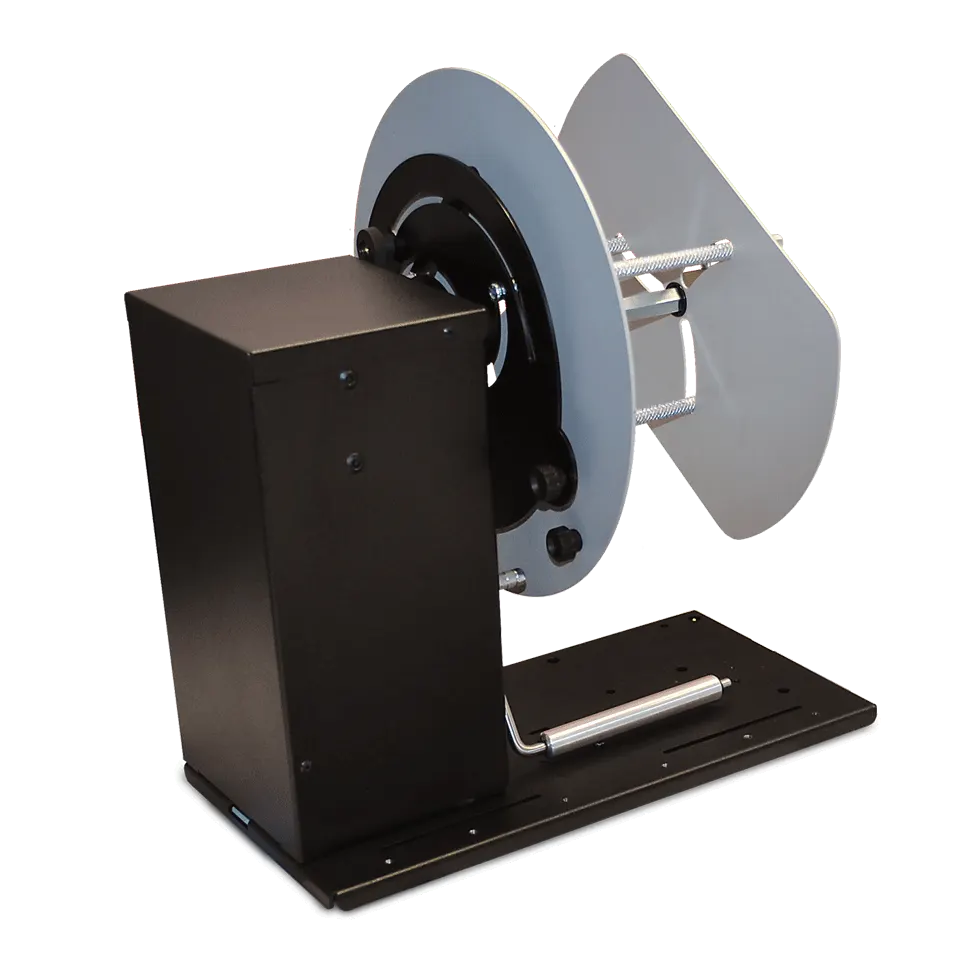

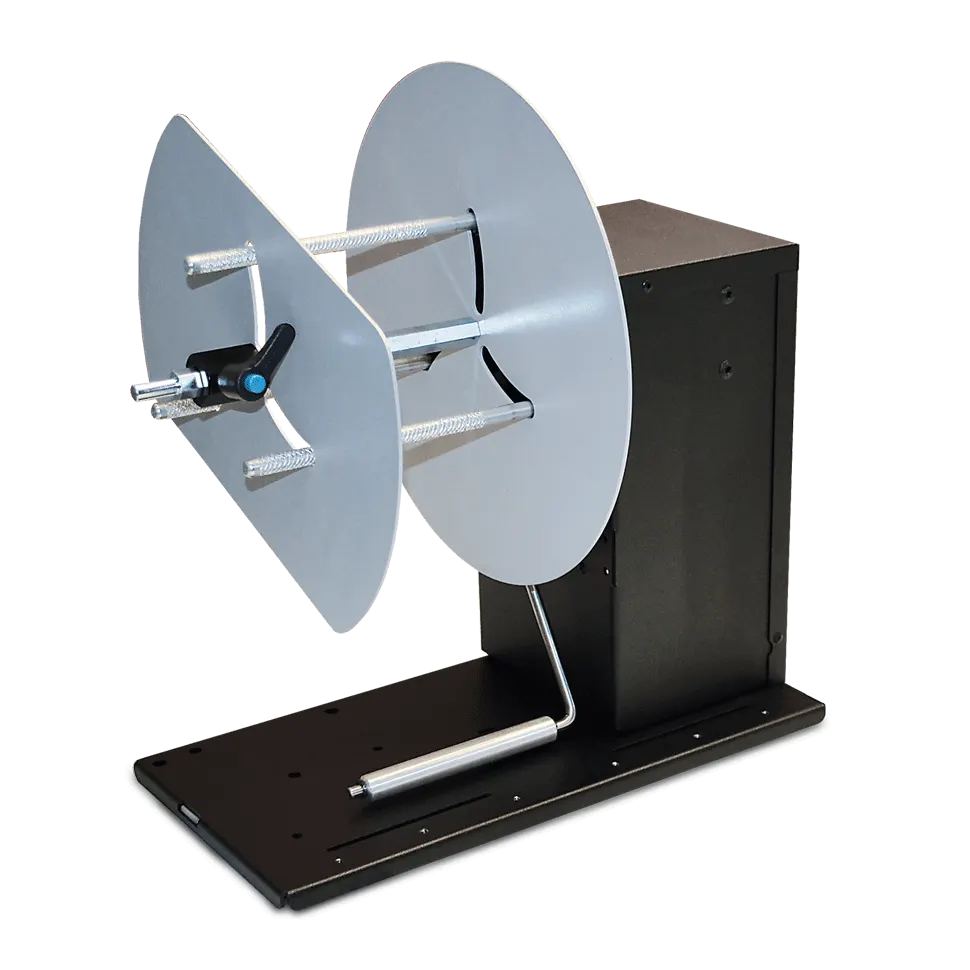

ASS1111-S0 label unwinder for epson c3500 ASD1111-S0 label rewinder for epson c3500 ASS1114-S0 label unwinder for epson c3500 ASD1114-S0 label rewinder for epson c3500
Label unwinder with
40mm - 118mm (1.57" - 4.64")
adjustable core holder
Label rewinder with
40mm - 118mm (1.57" - 4.64")
adjustable core holder

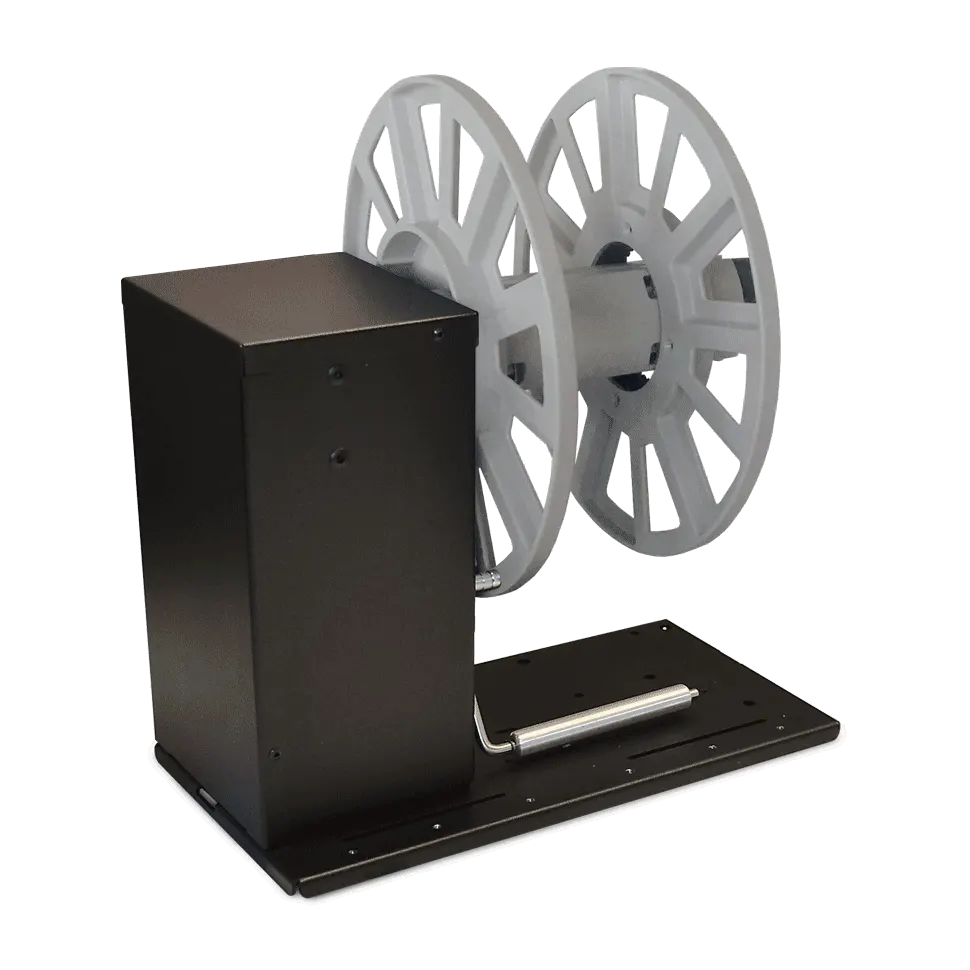

Label unwinder with
76mm (3") fixed core holder

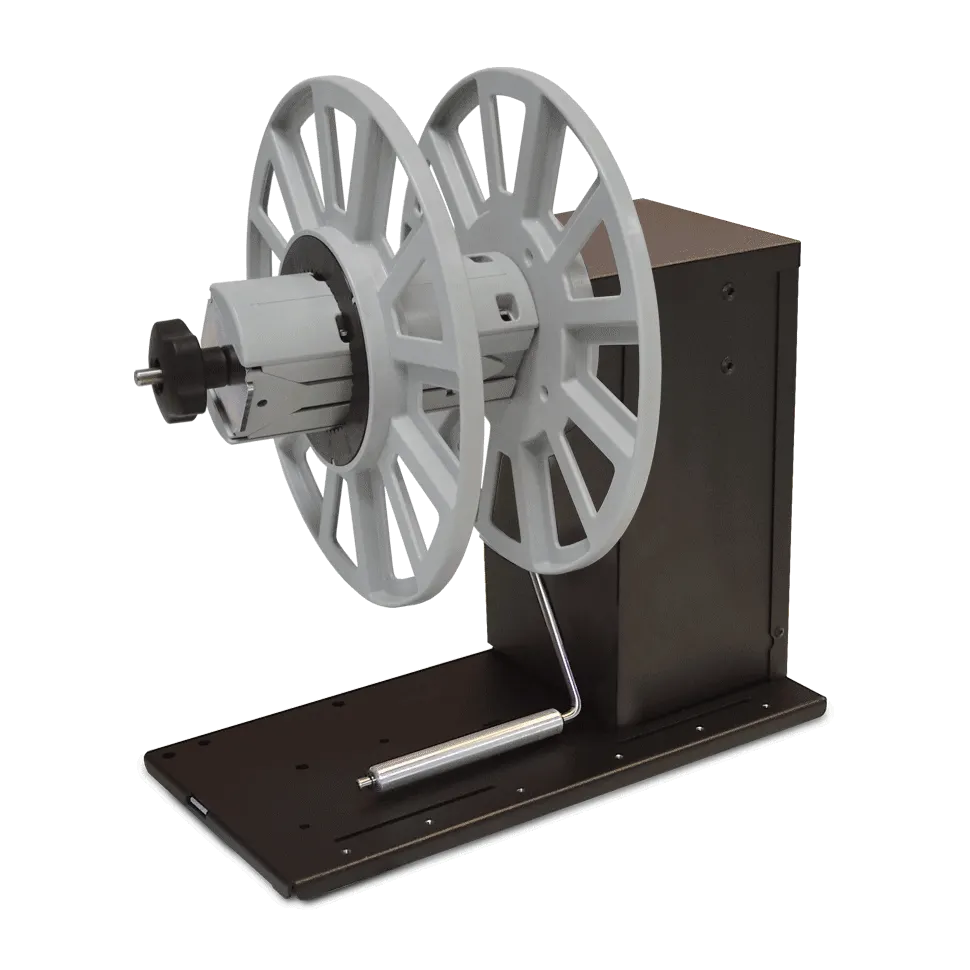

Label rewinder with
76mm (3") fixed core holder

P R I N T E R - P L A T E

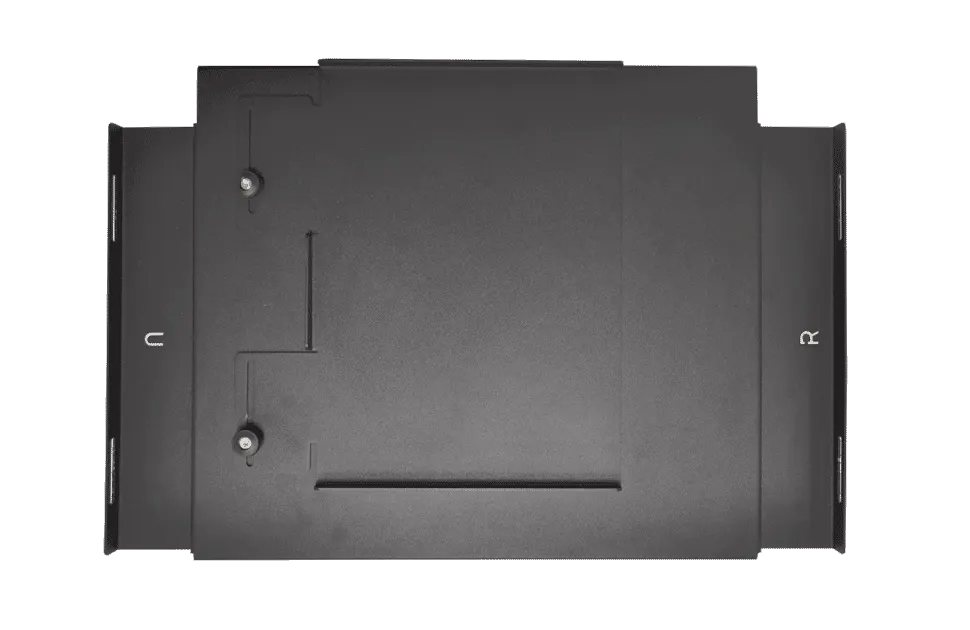

EPS35-JPL
EPS35-JPL
UW&RW printer plate for EPSON TM-C3500

CORE HOLDER

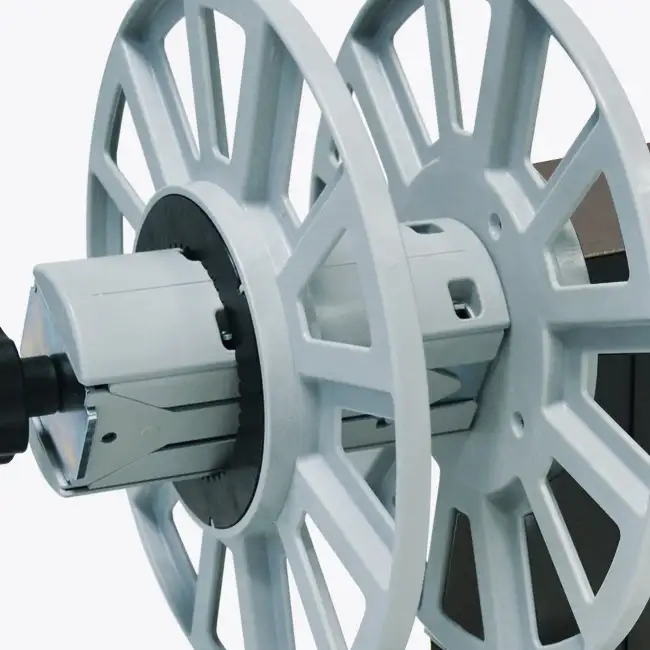

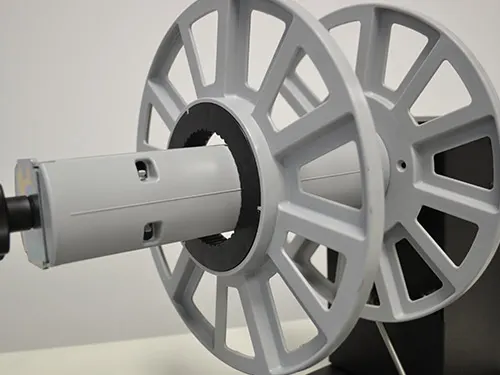

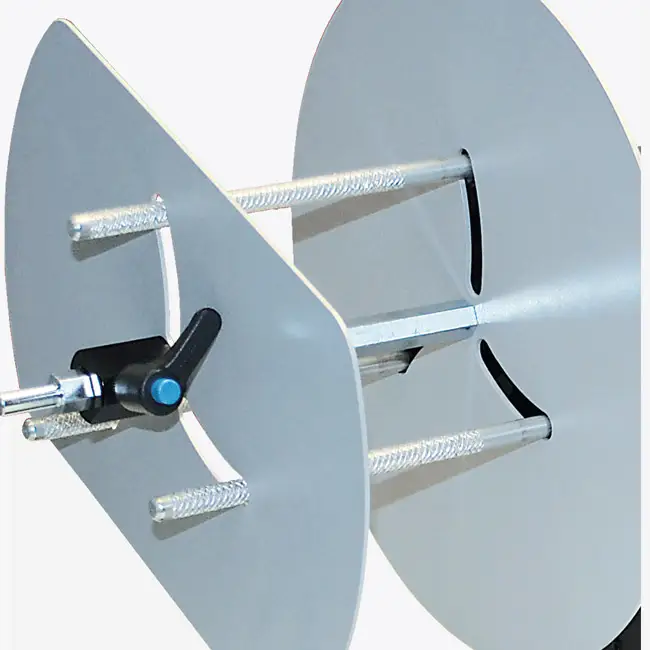

40-118mm CORE HOLDER 3" FIXED CORE HOLDER
adjustable core holder fixed core holder


SIZE
MODELS LENGTH WIDTH HEIGHT
All models
(second plate included)
43cm (19.93") 35cm (13.78") 36cm (14.17")
Printer Plate
(EPS35-JPL)
56cm (22.04") 38cm (14.96") /


VIDEO




GALLERY


  • label rewinder and unwinder for epson tm3500 printer detail
  • label rewinder and unwinder for epson tm3500 printer detail
  • label rewinder and unwinder for epson tm3500 printer detail
  • label rewinder and unwinder for epson tm3500 printer detail
  • label rewinder and unwinder for epson tm3500 printer detail
  • label rewinder and unwinder for epson tm3500 printer detail
