Roll to Roll System for Epson C6000A Printer
- 4.7
FEATURES

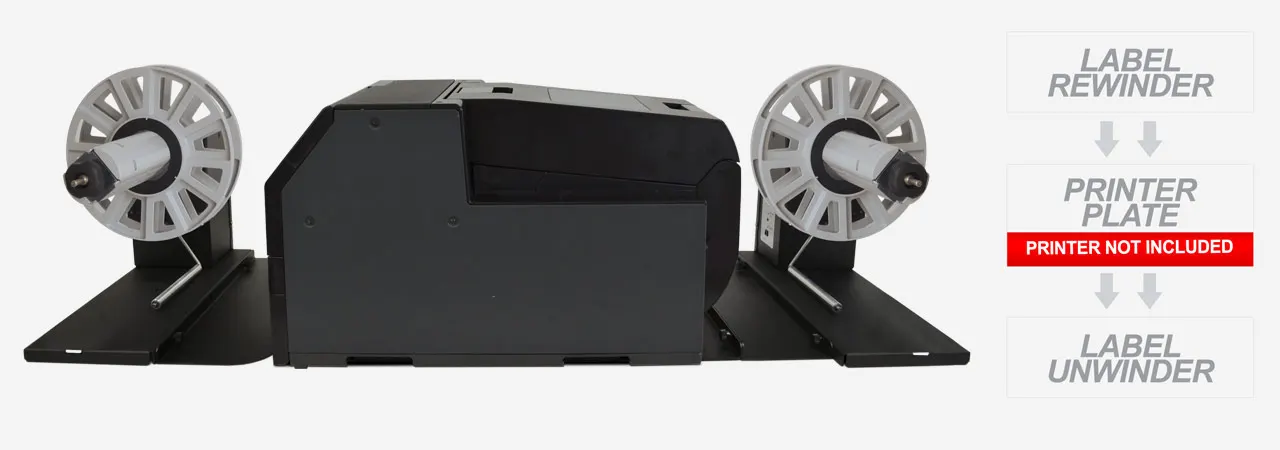

The unwinder and rewinder specifically designed for Epson C6000A color label printer can handle rolls up to 127mm (5") media wide and having an outside diameter up to 250mm (10"). Both Unwinder and Rewinder are equipped with a fixed 3" core holder.

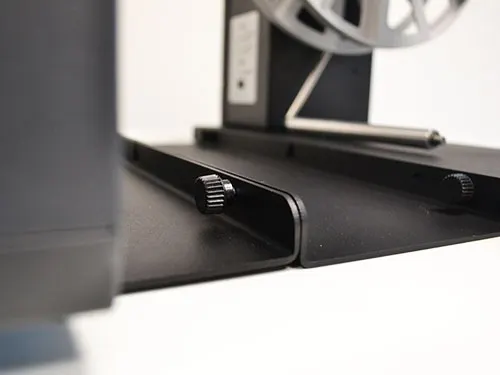

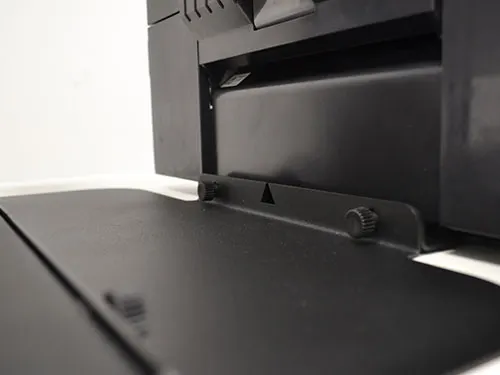

The printer will be locked over the printer plate.
This way the correct unwinding / rewinding operations are guaranteed and units are safely aligned with the printer.

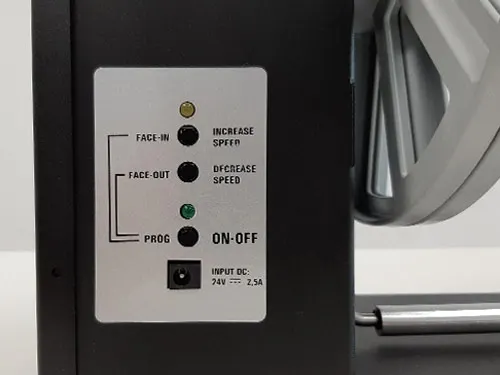

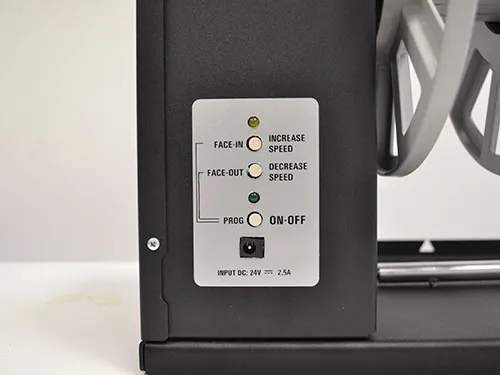

An external power supply 100/240VAC - 2.5A

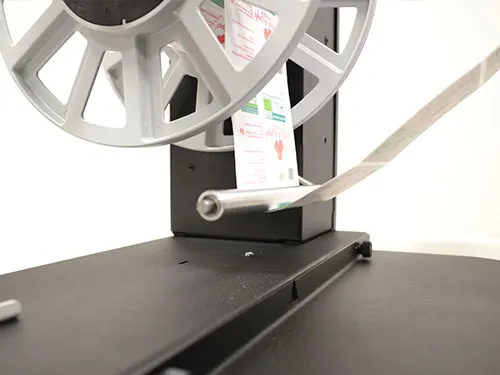

at 24V allows an electronic circuit to provide, through the tension arm,
the automatic adjustment of the rotation direction and speed.
Brochure | User Manual |
| UW6000A | RW6000A |
|---|---|
 |
 |

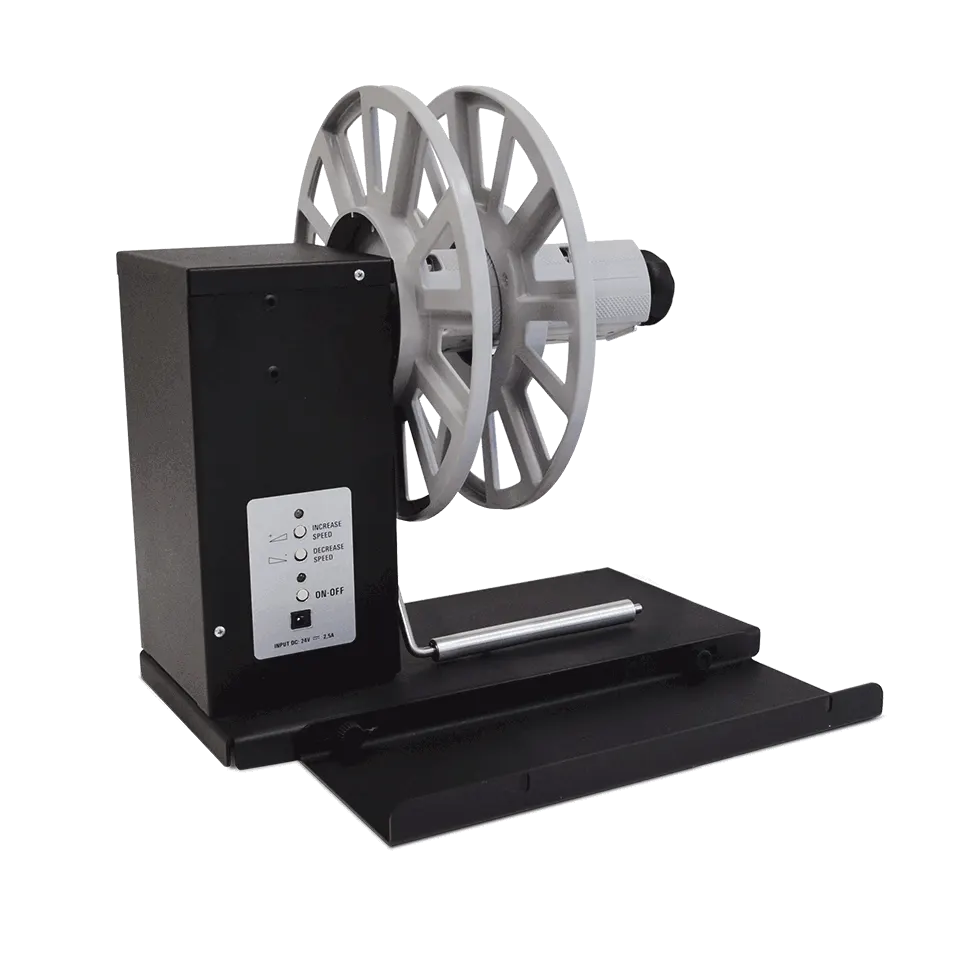

| Label unwinder Roll diameter up to 250mm (10") Media width up to 127mm (5") 3" fixed core holder |

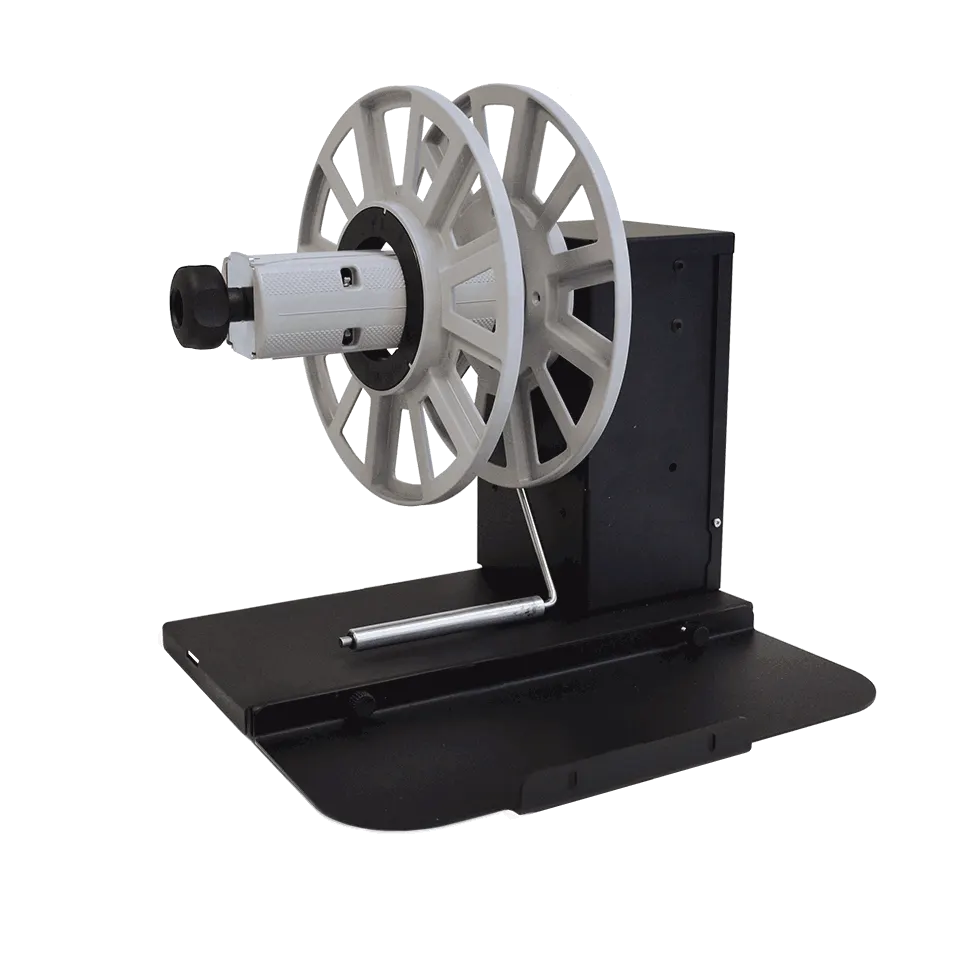

Label rewinder Roll diameter up to 250mm (10") Media width up to 127mm (5") 3" fixed core holder |
| JPL-6000A |
|---|
 |

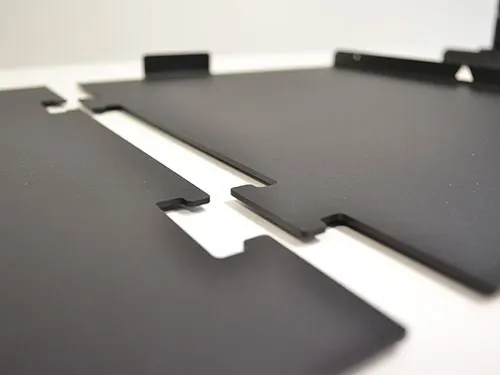

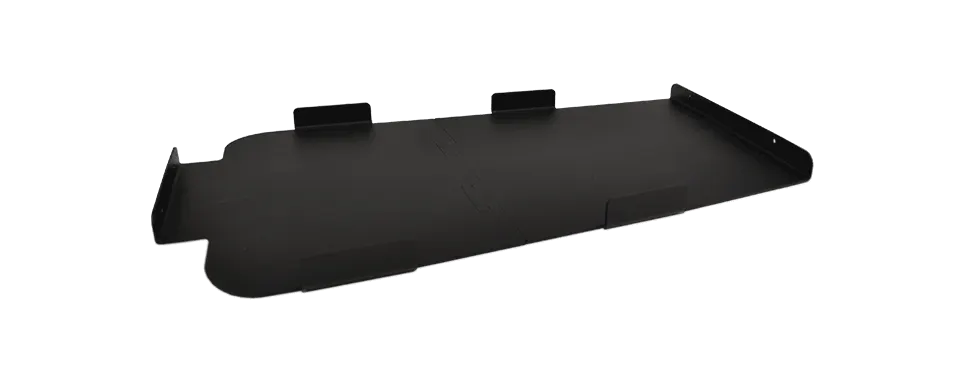

| Printer plate UW&RW for EPSON C6000A |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| UW6000A | 29cm (11.41") | 35cm (13.78") | 36cm (14.17") |
| RW6000A | 32cm (12.60") | 35cm (13.78") | 36cm (14.17") |
| JPL-6000A | 58cm (19.93") | 27cm (10.62") | / |
-
-

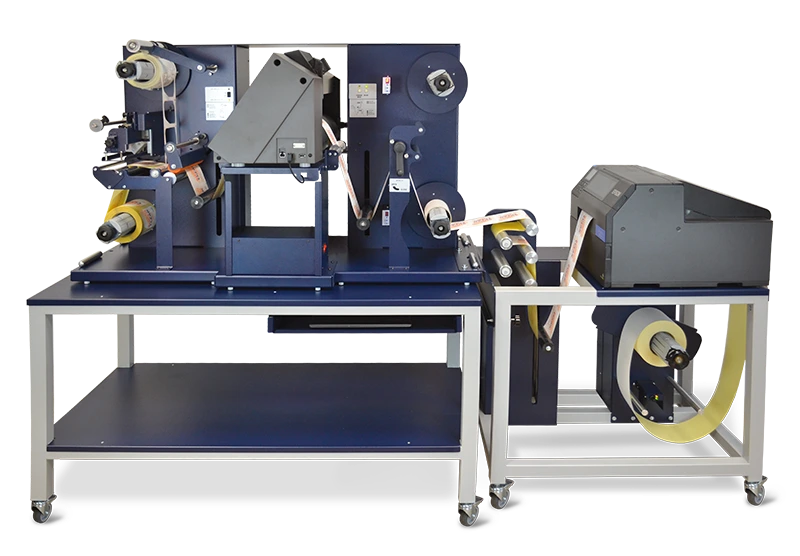

From print to the finished label:
Elevate label production with our in-house, real-time finishing system.
Our Epson C6000A Printer Work Table is specifically crafted to address the pressing need for accelerated label production within your company, streamlining the entire process from printing to the final label.
