FEATURES

---

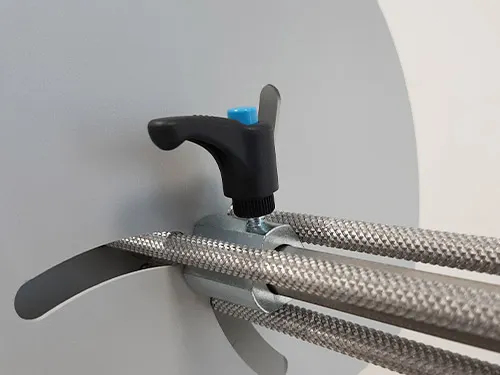

The unwinder and rewinder for Epson C4000 printers are used to manage rolls of media up to 127mm (5") having an outside diameter up to 250mm (9.84"). The users can select among the adjustable core holder 40mm - 118mm (1.57" - 4.64") and the 76mm (3") fixed.

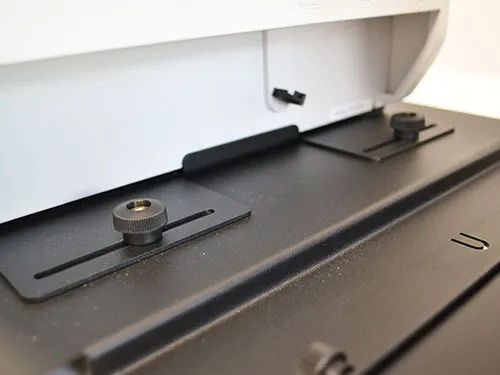

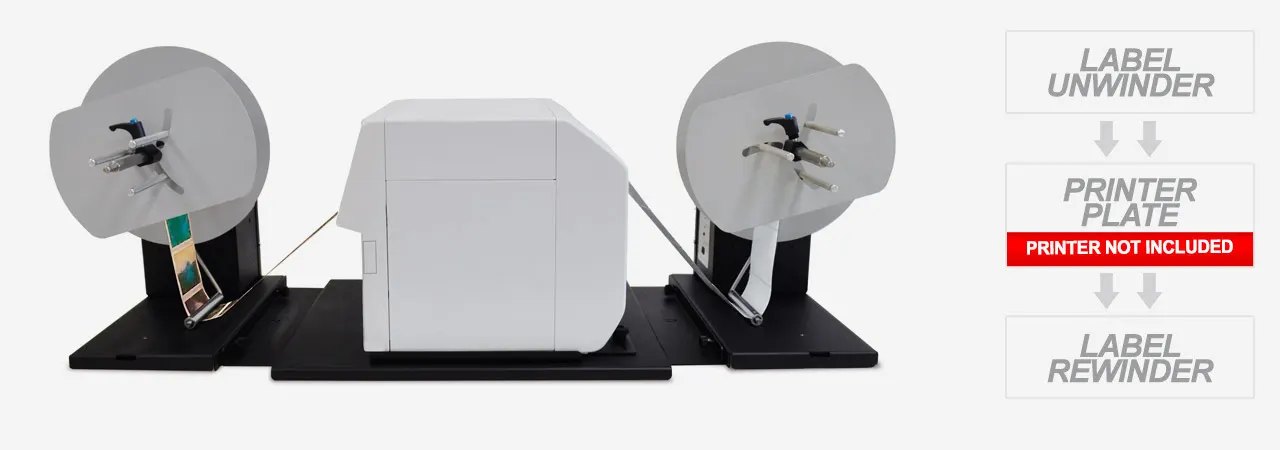

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

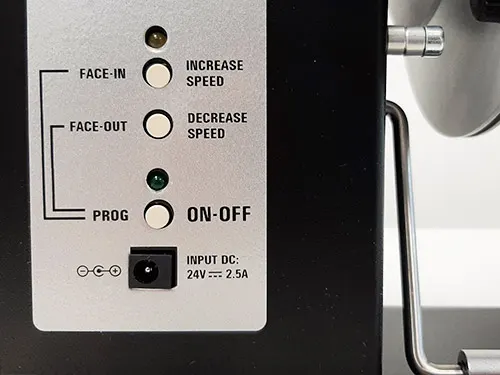

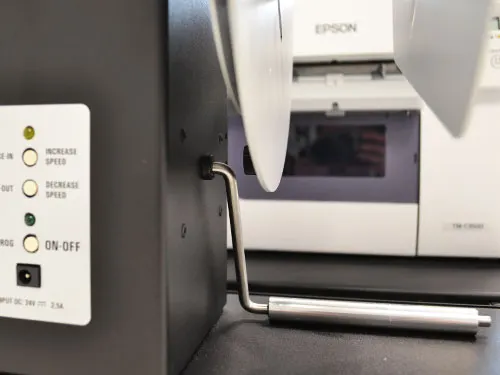

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.

Brochure | User Manual |

M O D E L S

ASS1111-S0	ASD1111-S0	ASS1114-S0	ASD1114-S0

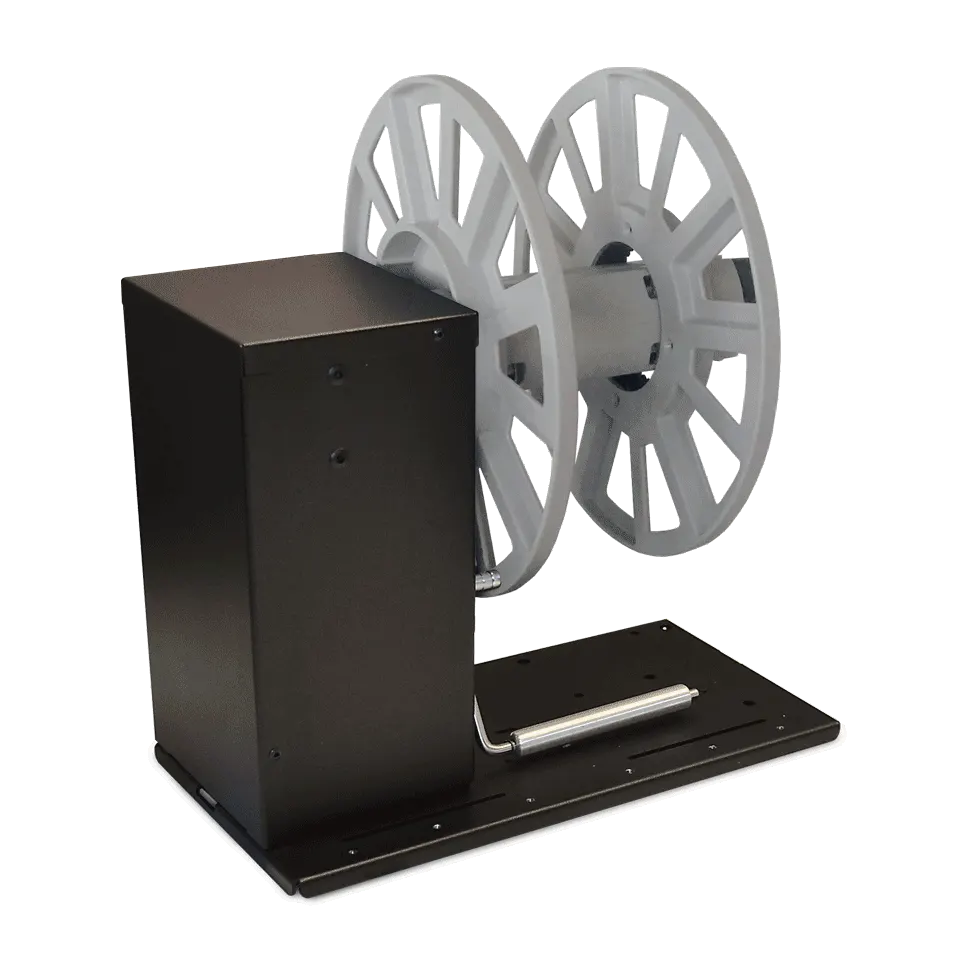

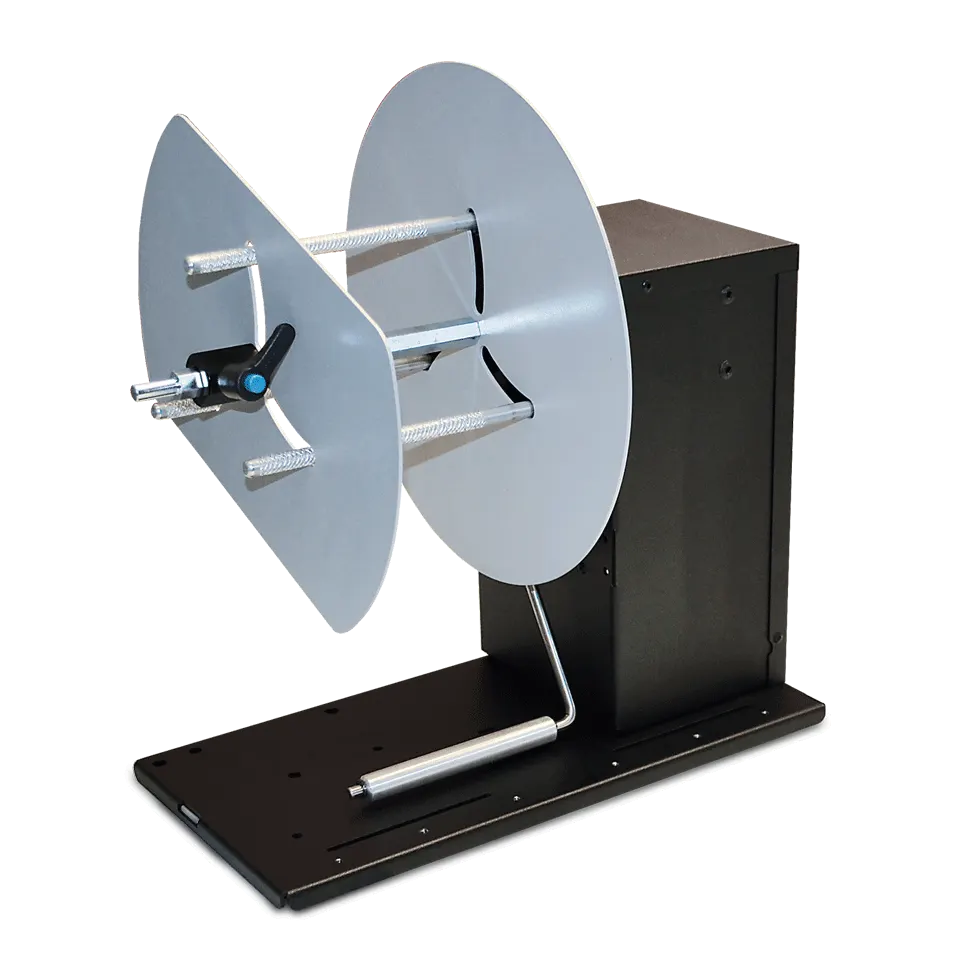

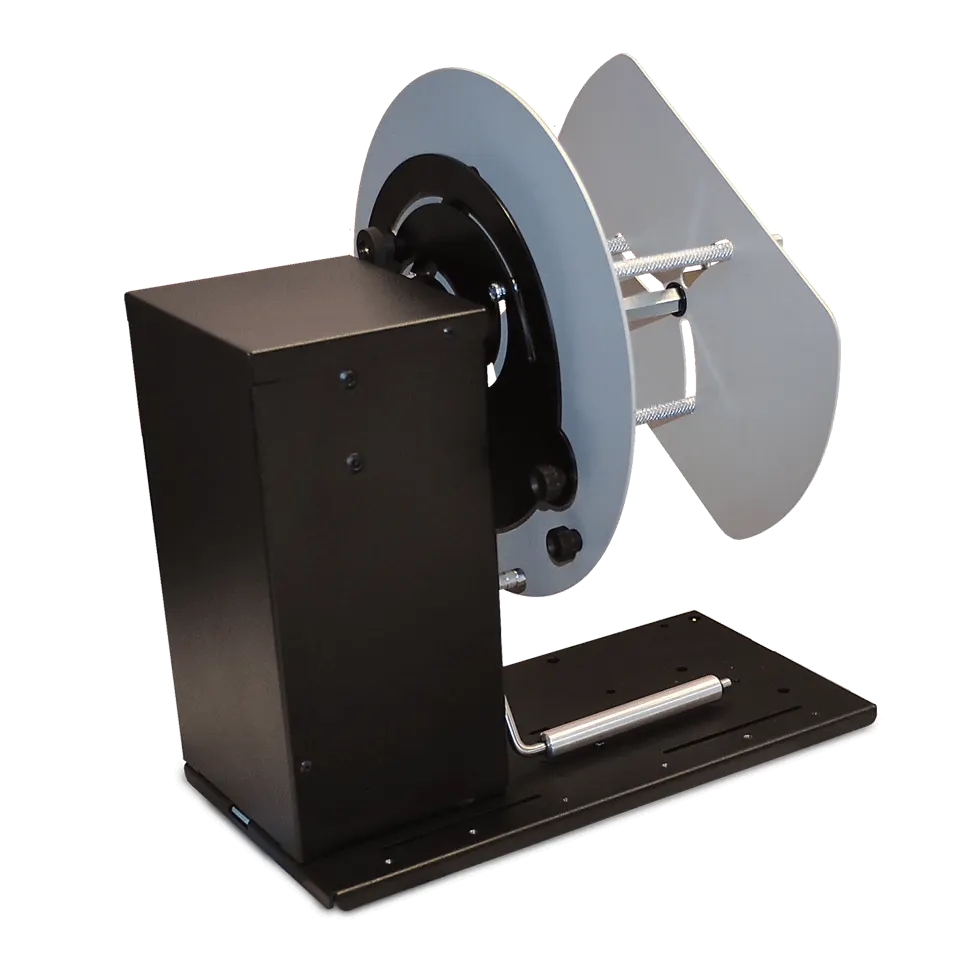

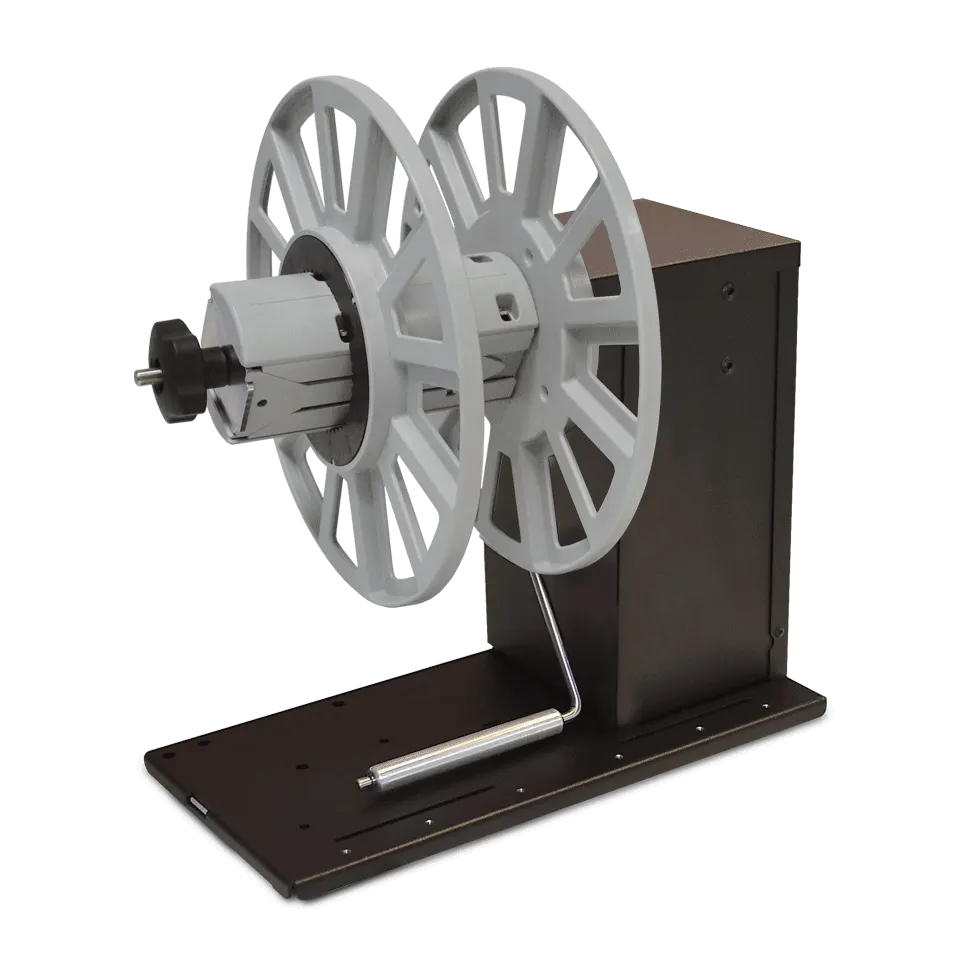

Label unwinder with 40mm - 118mm (1.57" - 4.64") adjustable core holder	Label rewinder with 40mm - 118mm (1.57" - 4.64") adjustable core holder	Label unwinder with 76mm (3") fixed core holder	Label rewinder with 76mm (3") fixed core holder

P R I N T E R - P L A T E

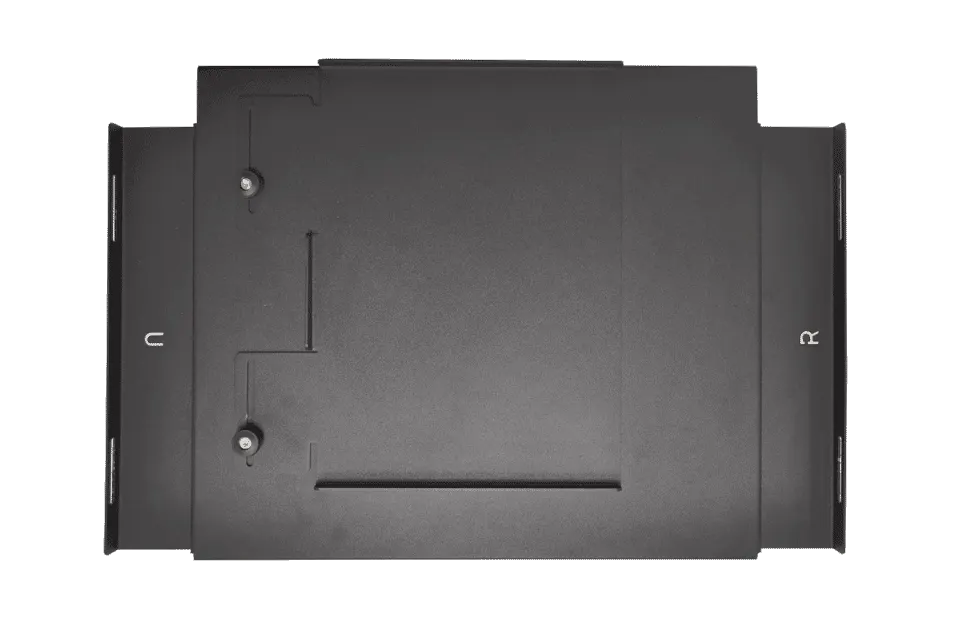

EPS40-JPL
UW&RW printer plate for EPSON C4000

CORE HOLDER

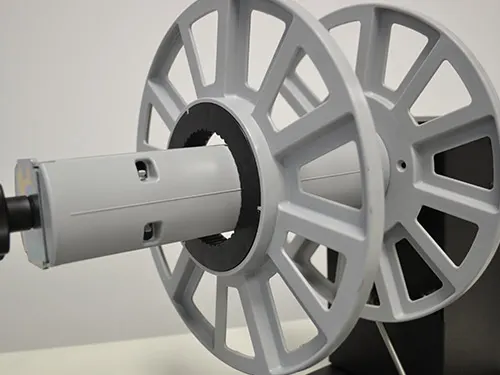

40-118mm CORE HOLDER	3" FIXED CORE HOLDER

SIZE

MODELS	LENGTH	WIDTH	HEIGHT
All models (second plate included)	43cm (19.93")	35cm (13.78")	36cm (14.17")
Printer Plate (EPS40-JPL)	56cm (22.04")	38cm (14.96")	/
