FEATURES

---

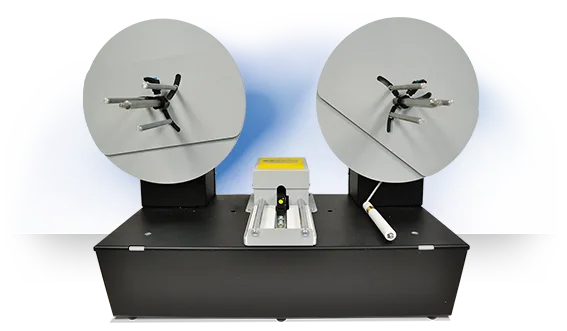

Automatic Label Counters Series allows to count the labels on a roll, to rewind and unwind the labels on one machine, to rewind the labels onto different core sizes, to rewind small rolls of labels from a larger one and also to rewind small rolls with a preset number of labels from a larger roll.

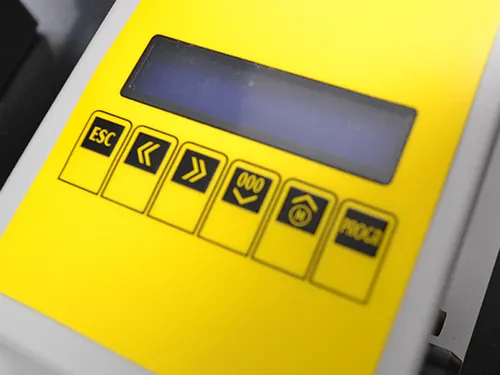

This last feature is possible thanks to the setting of the preset labels’ number through the electronic counter. Once the preset number of labels will be reached, the label counter will stop by uttering an acoustic signal. Both turrets of the label counter are motorized and it is possible to adjust the speed of rotation on the rewinder only while the unwinder has an automatic self-adjustment speed.

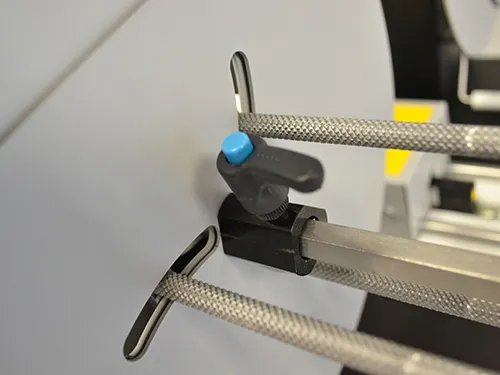

Automatic Label Counters Series can handle labels up to 150mm (5.9") wide and it can rewind and unwind rolls of labels with diameter up to 250mm (10"). It has a speed of 120 rpm and it is possible to choose between two different types of core holder: the adjustable core holder from 40mm (1.57") up to 118mm (4.64") or the core holder of 76mm (3").

Automatic Label Counters Series is available in many different versions and every model is marked by its own code. Through the "configuration table", it is possible to select the version better fitting your needs. The Automatic Label Counters turns in one direction only, from left to right. From the unwinder to the rewinder.

Brochure | User Manual Label Counter | User Manual Small reel to reel |

---

•

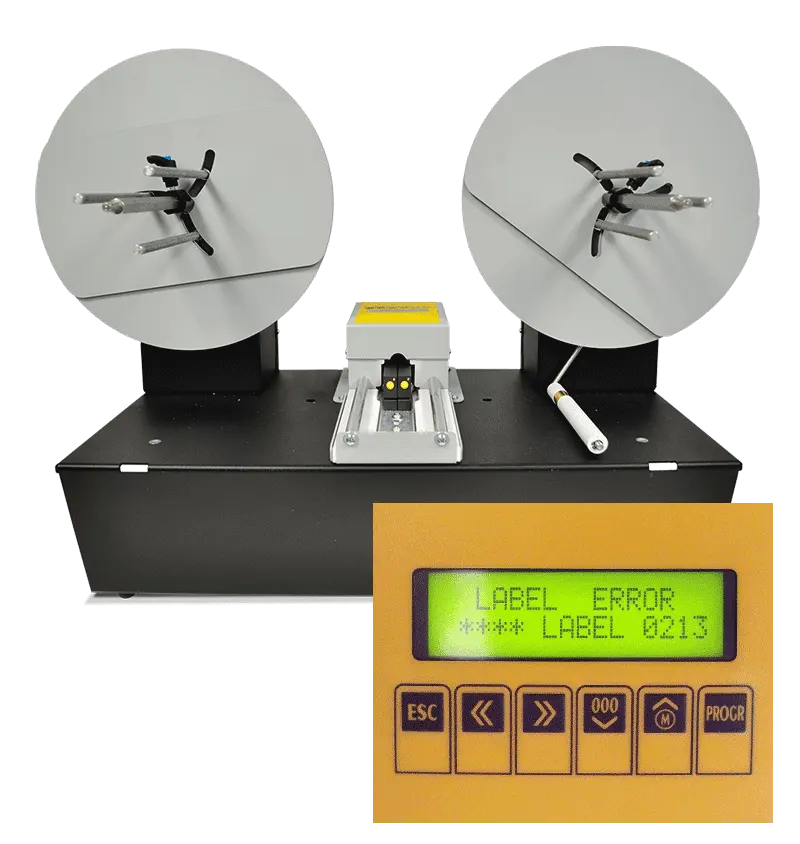

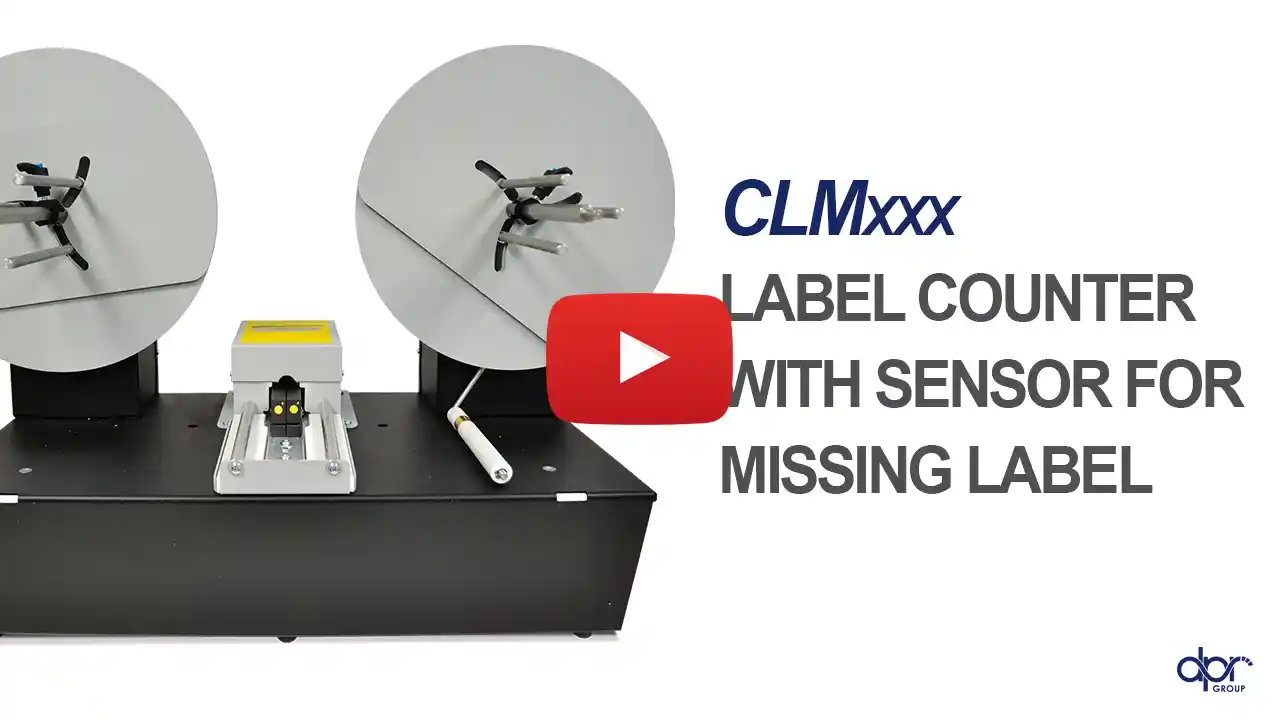

• CLM - Label counter with missing labels sensor

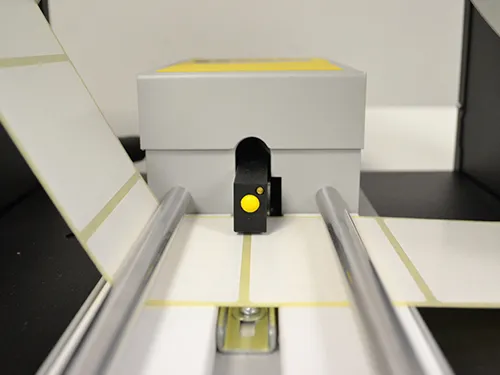

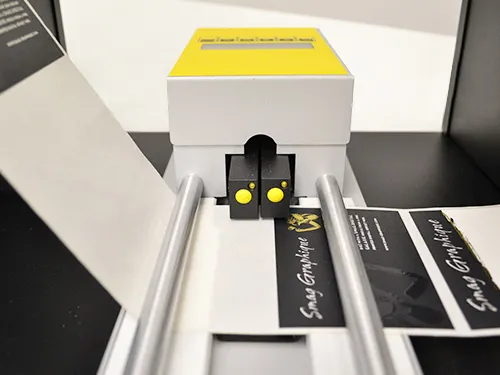

  The "CLM" has the same features of the "CE" with the option to stop when the sensor detects a missing label (watch the video).

  Outside diameter up to 300mm (11.81")

  Media width up to 150mm (5.9")

  3" fixed or adjustable core holder

  Maximum GAP 12mm (0.47")

---

•

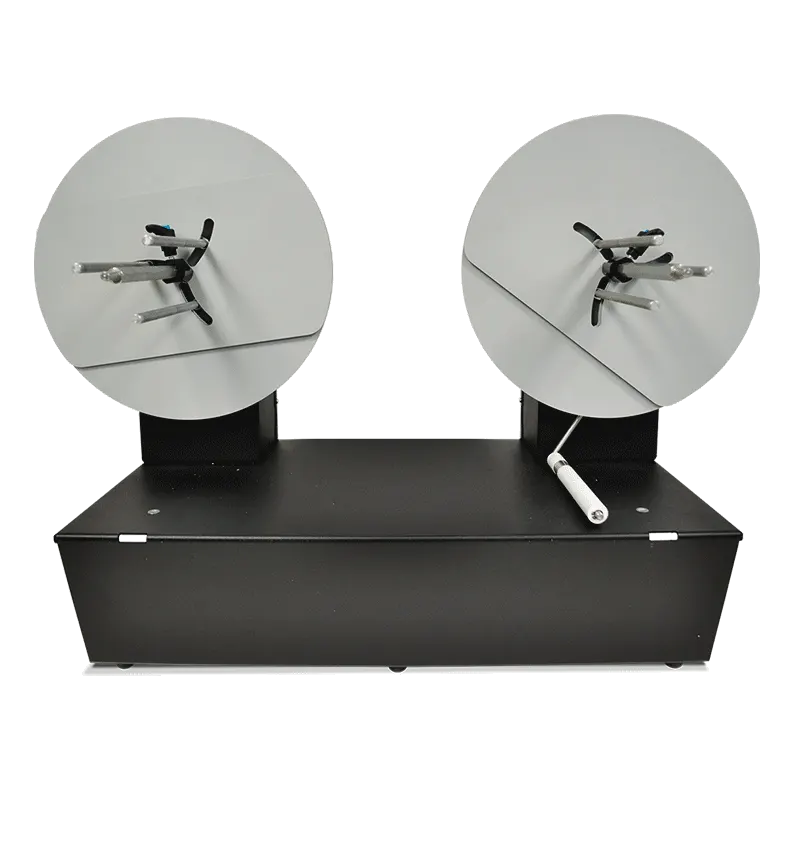

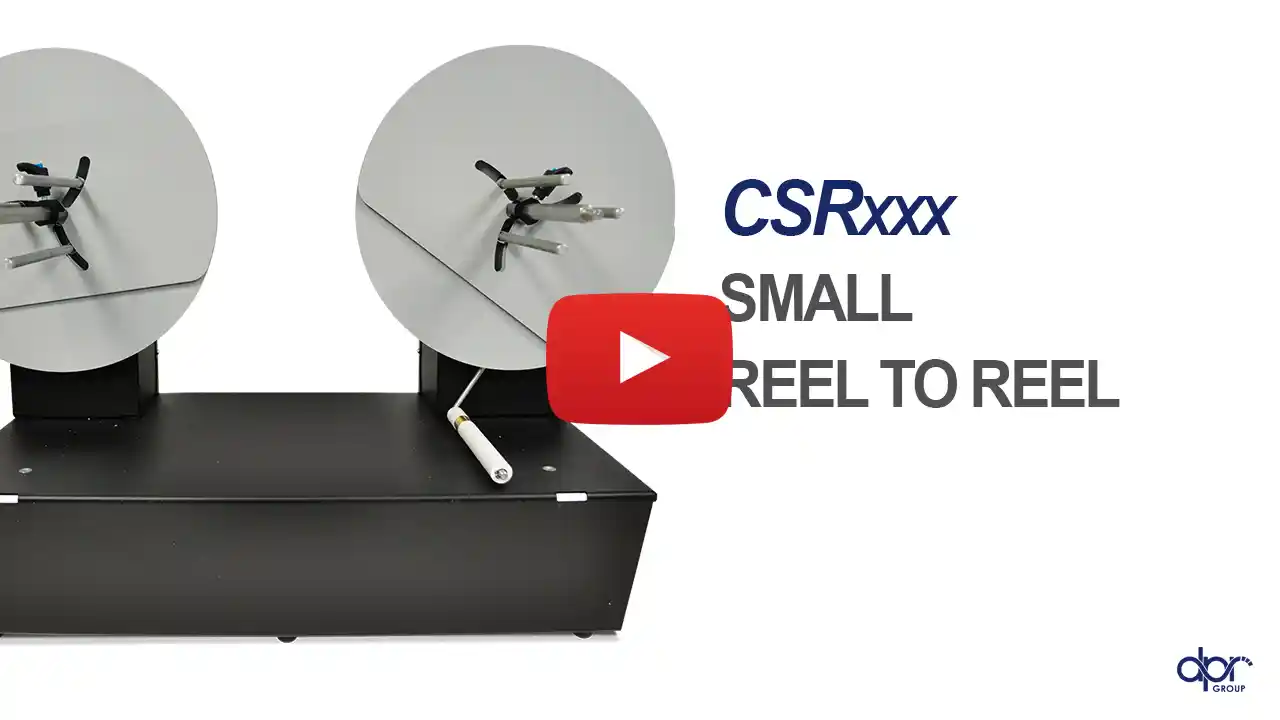

• CSR - Small reel to reel

  The CSR is a small reel to reel able to rewind your rolls of label with option "label face in" or "label face out" (watch the video).

  Outside diameter up to 300mm (11.81")

  Media width up to 150mm (5.9")

  Label "face-in" or "face-out"

CONFIGURATION

MODULE	MODEL	UNWINDER CORE HOLDER	REWINDER CORE HOLDER
CE Label Counter	1 Roll diameter: 250mm (9.84") Label Width: 150mm (5.9")	1 40mm (1.57") - 118mm (4.64")	1 40mm (1.57") - 118mm (4.64")
CLM Label Counter with sensor for missing label	2 Roll diameter: 300mm (11.81") Label Width: 150mm (5.9")	4 76mm (3") Fixed	4 76mm (3") Fixed
CSR Small reel to reel

Configuration example: CSR 2 1 4

SIZE

MODELS	LENGTH	WIDTH	HEIGHT
CE / CLM / CSR (OD 250mm)	68cm (26.77")	40cm (15.74")	41cm (16.14")
CE / CLM / CSR (OD 300mm)	70cm (27.55")	40cm (15.74")	44cm (17.32")

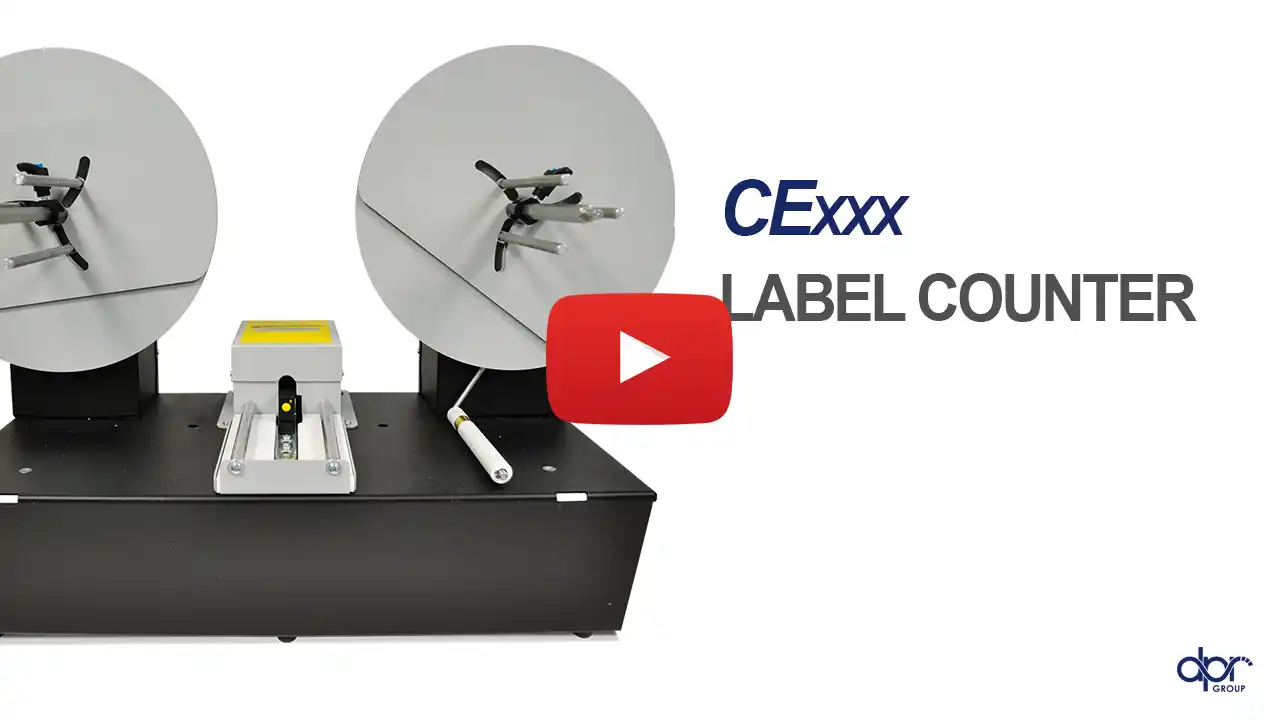

VIDEO

---
