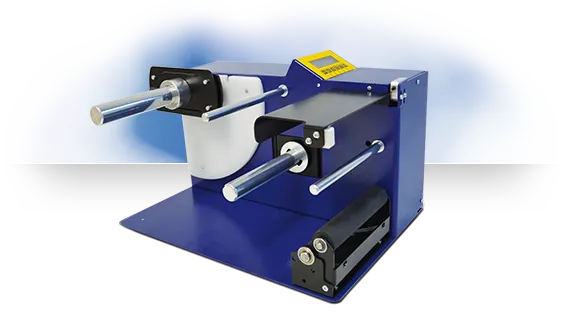

Electronic label dispenser
-
-
Your chosen model determines how units are managed:
Roll diameter:
Up to 300mm
Media width:
Up to 150mm or 210mm
Core Holder:
32mm fixed
- 4.7
FEATURES

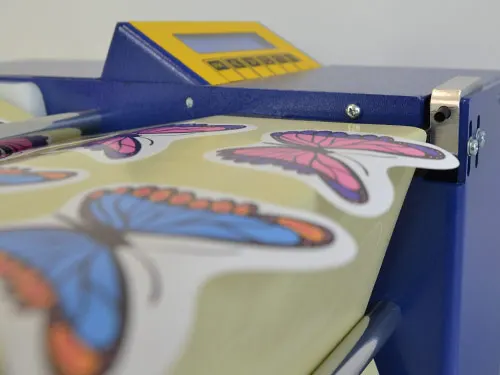

Big Electronic Label Dispenser Series is the ideal solution for your label handling operations like the food packaging sector. Versatile, simple to use, reliable and tough, our big electronic dispenser will make it easy for you to apply labels in your manufacturing process.

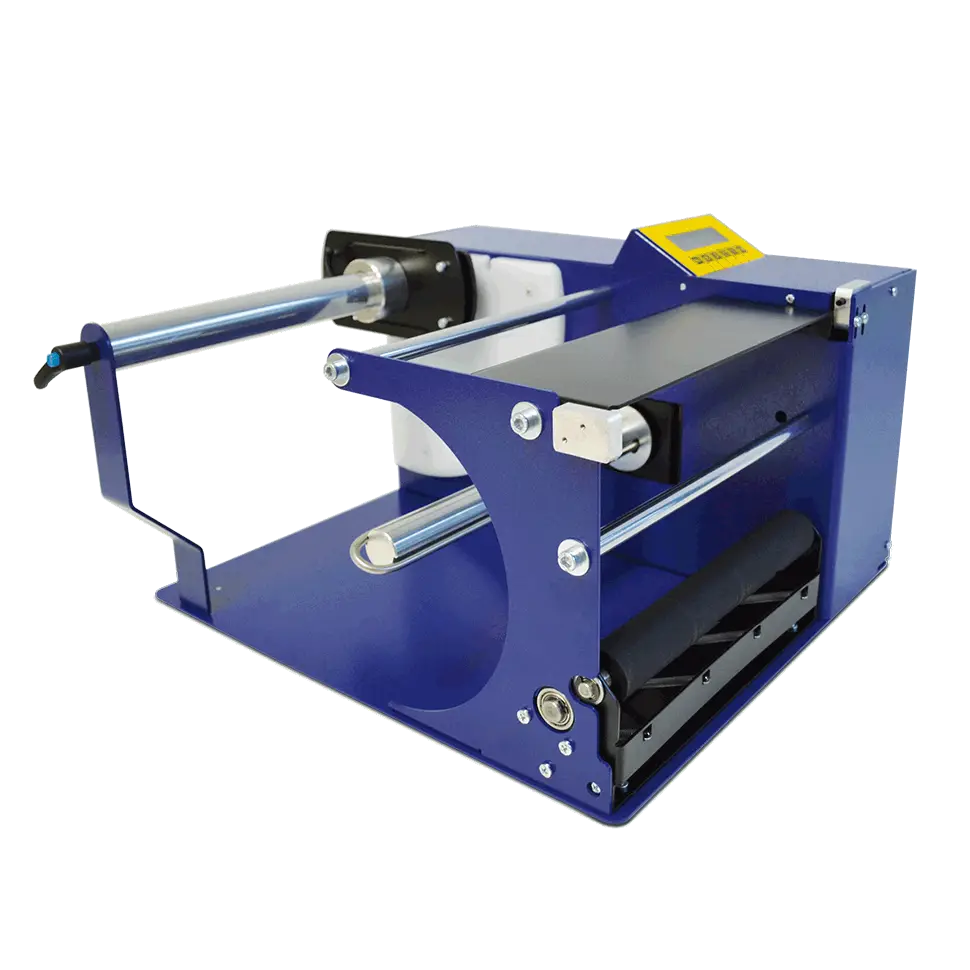

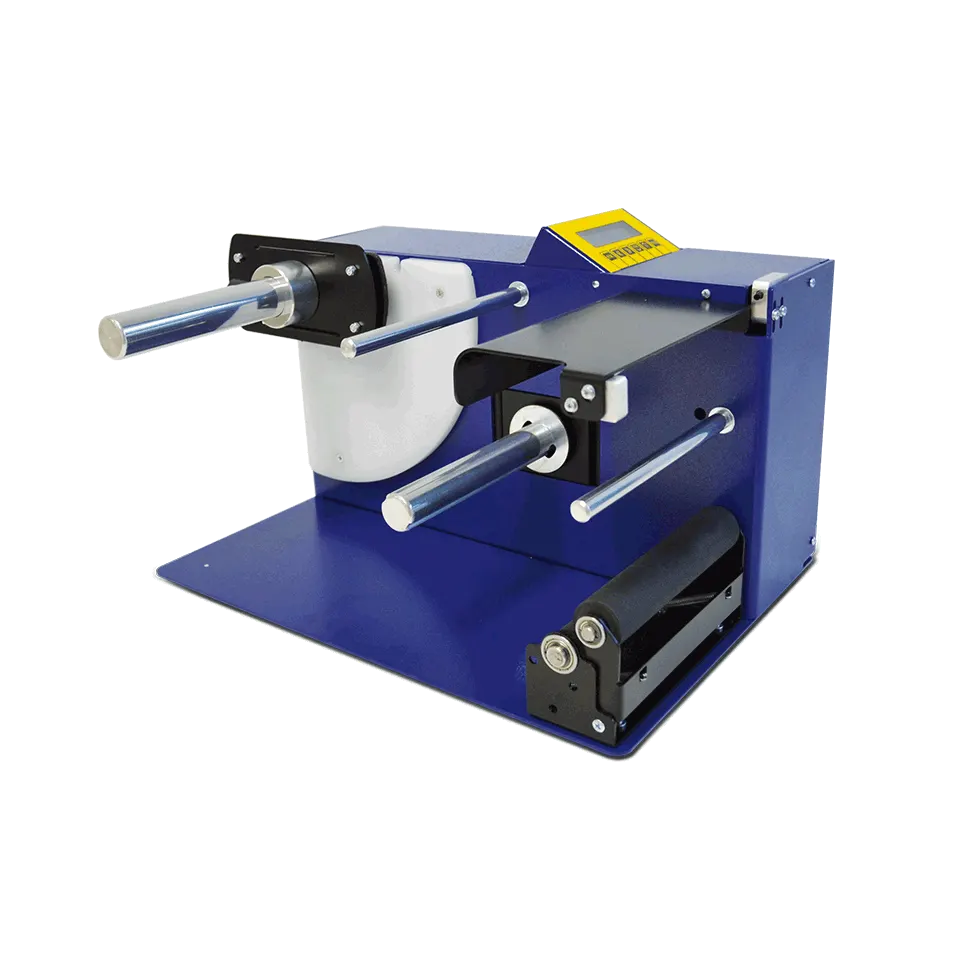

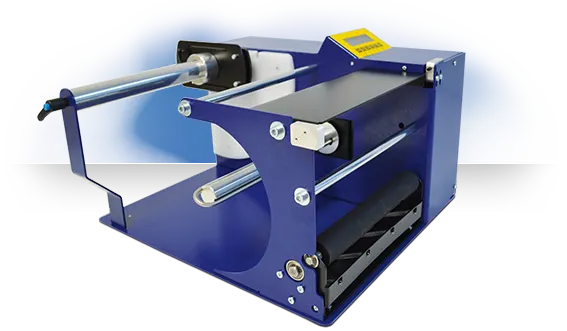

Available in two different versions: the model DN01 can handle labels up to 150mm (5.9") wide, while the model DN02 is able to handle labels up to 210mm (8.26") wide. All the other features are common to both models.
Brochure | User Manual |
| DN01 | DN02 |
|---|---|
 |
 |
| Label Width up to 150mm (5.9") | Label Width up to 210mm (8.26") |
| Roll Diameter up to 300mm (11.81") | Roll Diameter up to 300mm (11.81") |
| Core Holder from 32mm (1.25") on | Core Holder from 32mm (1.25") on |
| Maximum peel length: 180mm (available on request 600mm) |
Maximum peel length: 180mm (available on request 600mm) |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| DN01 | 44cm (17.32") | 33cm (13") | 25cm (8.26") |
| DN02 | 44cm (17.32") | 41cm (16.14") | 25cm (8.26") |

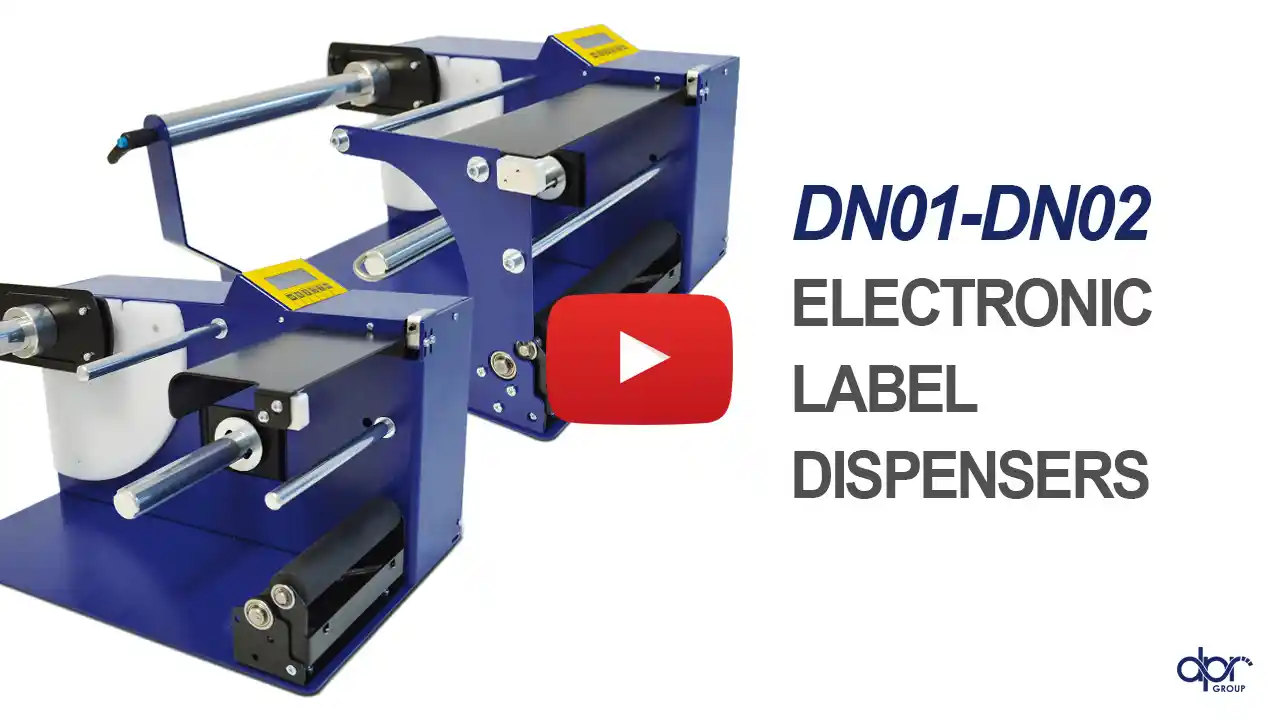

VIDEO
